Choosing a VCSEL for an OEM product isn't just about wavelength or optical power. The way the laser is supplied also matters. A bare VCSEL die gives engineers more control over mounting and optical placement, while a packaged VCSEL arrives with electrical connections and a defined mechanical structure.
Both options have their place. The difficulty is knowing which one fits your equipment, production capabilities, and operating conditions.
For compact optical sensors, a bare chip may save valuable space. For atomic magnetometers, industrial instruments, or equipment built in smaller quantities, a packaged device may be easier to work with.
The choice between VCSEL die vs packaged VCSEL comes down to four practical concerns: available space, heat management, assembly requirements, and total manufacturing cost.
VCSEL Die vs Packaged VCSEL: What Is the Difference?
A vertical-cavity surface-emitting laser (VCSEL) emits light perpendicular to the semiconductor surface. Its compact structure makes it suitable for optical sensing, spectroscopy, and other applications where space and wavelength control matter.
The distinction between bare die and packaged devices is mainly physical. The underlying laser technology can be similar, but the work needed to install and protect the device is different.
What Is a Bare VCSEL Die?

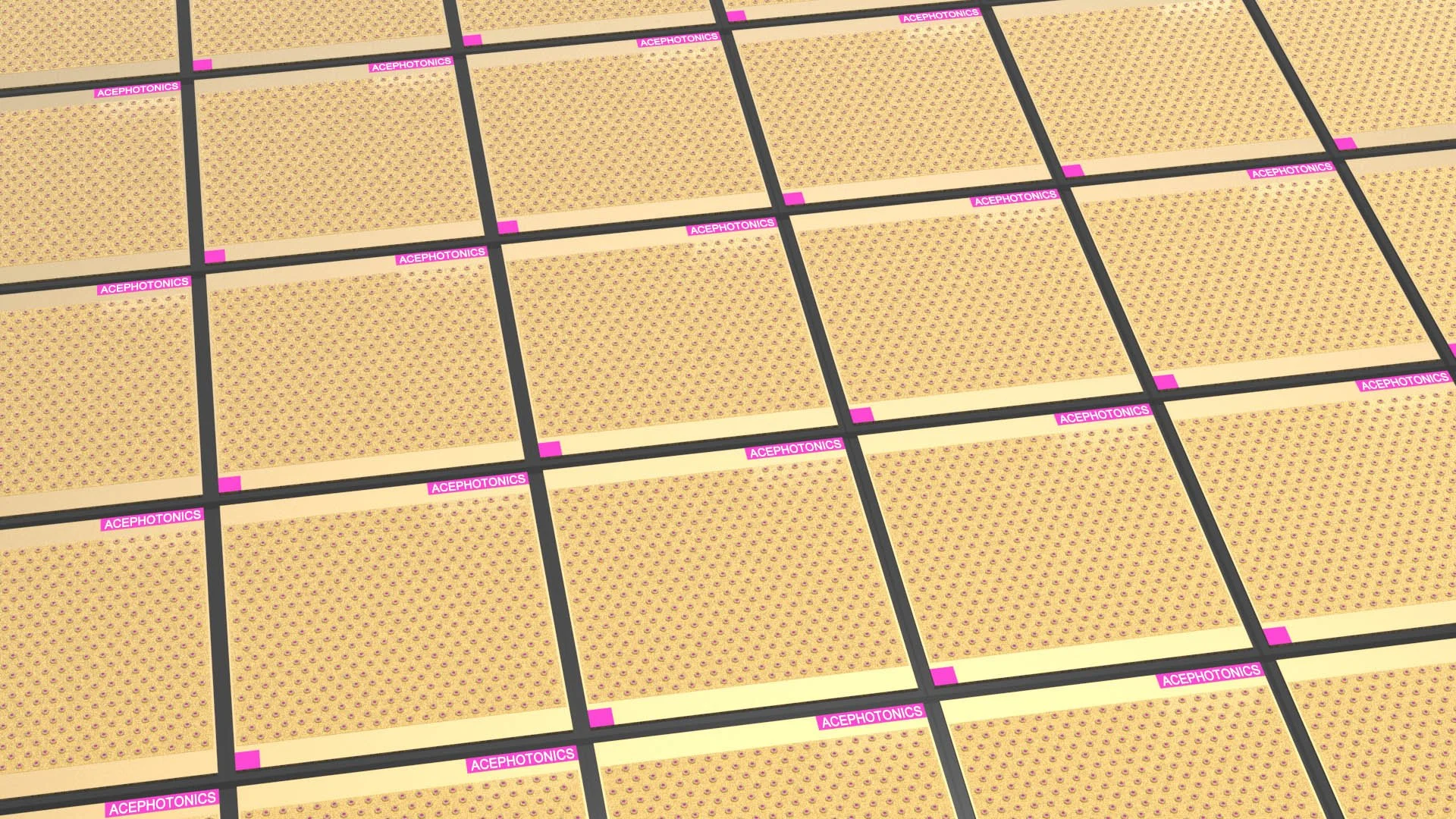

A bare VCSEL die is a semiconductor laser chip supplied without a conventional external housing. It contains the active laser structure, semiconductor mirrors, and electrical contacts.
The chip can be mounted onto a suitable substrate or submount and connected to the driving circuit through wire bonding or another compatible electrical connection.
This format gives OEM engineers control over several aspects of integration:
Placement of the laser within the optical assembly
Distance between the emitter and nearby lenses
Choice of mounting and heat-spreading materials
Electrical connection geometry
Overall component height and footprint
A bare die can be useful when the VCSEL must fit into an existing optical assembly with very little available space.
The main drawback is handling. The exposed semiconductor requires suitable equipment and careful assembly. Damage to the emitting surface, bond pads, or electrical connections can affect the finished device.
What Is a Packaged VCSEL?
A packaged VCSEL contains a laser chip mounted inside a protective structure. Depending on the application, the package may include electrical leads, a metal or ceramic base, and an optical window.
TO-46 is one commonly used format. Custom packages are also available for products with particular mounting, optical, or material requirements.
The main advantage is that the most delicate chip-level assembly operations have already been completed.
An OEM manufacturer can work with a defined component instead of mounting and connecting the semiconductor die directly.
Packaging can also make the laser easier to handle during equipment assembly and maintenance. The level of environmental protection depends on the package construction; a packaged VCSEL is not necessarily hermetically sealed.
Packaged VCSEL vs Bare Chip: Main Differences
The following table outlines the practical differences between the two formats.
Neither format guarantees better optical performance. The semiconductor chip, mounting conditions, driving electronics, and surrounding optics all influence the finished product.
VCSEL Die vs Packaged VCSEL: Optical Integration
Optical placement is one of the strongest reasons to consider bare die.
In a compact sensing head, the distance between the laser and the first optical element may be very small. A conventional package introduces fixed dimensions that can restrict where the emitter sits.
A bare die gives engineers more freedom to position the emitting surface relative to the lens, aperture, or optical substrate.
That freedom can be useful, but it also places more responsibility on the assembly process.
Emitter Position and Optical Alignment
A VCSEL die can be mounted directly onto a dedicated substrate. This allows engineers to control the emitter position without accommodating the height of a conventional metal housing.
The benefit is particularly relevant when the optical assembly contains miniature lenses or closely spaced components.
A packaged VCSEL has a more defined mechanical interface. Its emitter position is determined by the internal construction and manufacturing tolerances.
For equipment with sufficient space, that predictable geometry can simplify assembly.
Why the Distance to the First Lens Matters
The position of the first lens affects how the emitted beam is collected and collimated.
When the lens is close to the VCSEL, small changes in emitter height or lateral position may influence the resulting beam direction and shape.
A bare chip offers more placement flexibility, but accurate die attachment becomes important.
With a packaged device, the package dimensions and emitter location must be considered when selecting the lens holder and mounting distance.
Optical Windows and Reflections
A packaged VCSEL may include a transparent window that protects the semiconductor from contamination and physical contact.
The window is useful, but it adds optical surfaces.
Depending on the material, coating, and orientation, these surfaces may introduce reflection losses or unwanted optical feedback.
This deserves attention in applications that require stable spectral behavior, including atomic sensing and precision spectroscopy.
Bare die can avoid an additional package window when the surrounding optical assembly provides adequate protection.
The decision should depend on the actual optical path rather than assuming that fewer surfaces always produce a better device.
How Packaging Affects VCSEL Thermal Performance
Temperature influences several important VCSEL characteristics, including emission wavelength, output power, and electrical behavior.
The laser generates heat during operation. That heat must move from the semiconductor junction through the mounting structure and eventually into the surrounding environment.
The package determines part of this thermal path.
Heat Dissipation in Bare VCSEL Die
A bare chip can be attached directly to a thermally conductive submount.
When the materials and bonding process are suitable, this arrangement can provide a short path for heat to leave the semiconductor.
The actual performance depends on the die attachment material, substrate, contact area, and surrounding thermal structure.
A poor mounting interface can create excessive thermal resistance even when the chip sits on a conductive base.
Bare die is not automatically the cooler option. Its advantage is the freedom to build a thermal path suited to the equipment.
Thermal Behavior of Packaged VCSELs
Packaged VCSELs transfer heat through their internal mounting structure and package base.
A well-constructed package can provide repeatable thermal contact and make installation onto a temperature-controlled mount more straightforward.
The package also introduces additional interfaces that influence heat flow.
When evaluating a packaged device, engineers should consider how the package is attached to the host equipment and whether the available cooling arrangement is sufficient.
Why Wavelength Stability Matters
VCSEL emission wavelength changes with junction temperature and operating current.
In atomic sensing, this is especially important because the laser may need to operate close to a narrow atomic transition.
Rubidium D1 lies near 795 nm, while cesium D1 lies near 894.6 nm.
A laser intended for either application must reach the required wavelength under its actual electrical and thermal operating conditions.
A catalog wavelength alone cannot establish suitability.
Engineers should check the available tuning range, operating current, temperature conditions, and optical power at the intended operating point.
Electrical Connections and Assembly Requirements
Optical characteristics are only part of the integration work.
A VCSEL needs a suitable current source, electrical connections, and protection from conditions that could damage the semiconductor.
Bare and packaged devices create different requirements for the manufacturing team.
Die Attachment and Wire Bonding
Bare VCSEL die normally requires mounting onto a compatible substrate before electrical connections are completed.
Die attachment must provide adequate mechanical stability and thermal contact.
Wire bonding is often used to connect the chip contacts to the surrounding circuit.
The bond wires need sufficient clearance from nearby components, particularly when the optical assembly is compact.
Bond geometry also matters when the laser operates with fast electrical modulation.
A manufacturer without suitable die-bonding and wire-bonding equipment may find packaged components easier to integrate.
Electrical Protection and Handling
VCSEL chips can be damaged by electrostatic discharge or unsuitable electrical drive conditions.
Handling procedures, storage conditions, and assembly equipment should account for this sensitivity.
Packaged devices reduce direct handling of the semiconductor, although electrical protection remains necessary.
For either format, the laser driver should provide controlled current and suitable start-up behavior.
A convenient package does not remove the need for carefully matched driving electronics.
When Should OEM Manufacturers Choose Bare VCSEL Die?
Bare die is worth considering when the laser must become part of a compact, customized optical assembly.
The strongest case is usually a product that already requires semiconductor-level assembly.
Bare Die VCSEL for OEM Integration
A bare die VCSEL for OEM integration can be suitable for miniature optical sensing heads, chip-on-board assemblies, and systems that integrate the laser closely with other photonic components.
It allows the OEM to determine the mounting structure instead of working around a conventional package.
This can be useful when:
The available space is too small for a standard package.
The emitter needs to sit close to a miniature lens.
A specific substrate or heat-spreading material is required.
The product already includes a protective enclosure.
Semiconductor die attachment and wire bonding are available in production.
The ability to mount the chip is not the only concern. The assembly process must also deliver consistent placement and electrical connections across production batches.
Integration Into an Existing Optical Housing
Some OEM products already contain a housing with optical windows, mounting surfaces, and thermal control.
In these cases, adding a separate packaged laser may increase the number of mechanical interfaces.
Mounting bare die directly into the existing assembly may be more practical.
Before taking this route, engineers should check whether the housing provides adequate protection against contamination, moisture, and mechanical damage.
The materials used during chip attachment must also be compatible with the semiconductor and the intended operating environment.
When Is a Packaged VCSEL the Better Option?
Packaged VCSELs are often preferable when ease of assembly matters more than minimizing the size of the laser component.
They are useful for OEM manufacturers that do not operate dedicated semiconductor assembly lines.
A package can also simplify component replacement, handling, and mechanical installation.
TO-46 VCSEL for Industrial and Laboratory Equipment
TO-46 packages provide a familiar format for mounting small semiconductor lasers.
Their defined dimensions and electrical leads can simplify installation into optical instruments and laboratory equipment.
They are particularly useful when the system already accommodates TO-style components.
Engineers still need to check package dimensions, pin connections, optical window characteristics, and heat transfer through the base.
Custom VCSEL Packaging
Standard packages do not fit every OEM application.
A custom package may be required because of available space, electrical pin arrangement, optical window specifications, or mounting restrictions.
Custom packaging also allows the manufacturer to consider the relationship between the semiconductor and the surrounding equipment.
This can be useful when an OEM wants a ready-to-install laser component without taking responsibility for chip-level assembly.
Non-Magnetic VCSEL Packaging for Quantum Sensors
Atomic magnetometers and other sensitive measurement systems may require strict control of magnetic materials near the sensing region.
Some conventional package components contain ferromagnetic materials that may be unsuitable for these environments.
Non-magnetic VCSEL packaging offers an alternative.
Material selection can include the housing, electrical leads, bonding materials, and other components close to the laser.
The complete optical assembly must still be evaluated. Using a non-magnetic VCSEL package does not automatically make the surrounding equipment free from magnetic interference.
For compact atomic sensors, this material requirement may be more important than the physical size of the package.
Bare Die and Packaged VCSEL: Which Costs Less?
The purchase price of the laser is only one part of OEM manufacturing cost.
Bare die may have a lower unit price, but additional operations are required before it becomes a usable component in the finished equipment.
These operations can include chip handling, die attachment, wire bonding, inspection, and protective enclosure assembly.
A packaged VCSEL includes more of this work in the supplied component.
For companies without semiconductor assembly facilities, the packaged option may reduce overall manufacturing expense.
Production Volume Changes the Calculation
For low-volume production, purchasing packaged devices may be more economical than establishing a dedicated chip assembly process.
At higher volumes, an OEM with suitable equipment may be able to integrate bare die efficiently.
The financial calculation also depends on assembly yield.
If chip handling or bonding causes significant losses, the apparent price advantage of bare die can disappear.
A useful cost estimate should include the complete laser assembly, not just the semiconductor component.
What Should You Check Before Ordering a VCSEL?
A supplier can identify suitable chip and package options more accurately when the operating requirements are clear.
The following information is worth preparing before requesting a quotation.
Check the Actual Working Conditions
A VCSEL that meets the desired wavelength at one temperature may behave differently at another.
Optical output and emission characteristics also change with drive current.
Before selecting a device, confirm the conditions associated with the quoted specifications.
For atomic sensing equipment, it is useful to identify the target transition and acceptable wavelength tuning range.
For oxygen sensing, the relevant absorption feature and operating conditions should be specified.
These details help avoid choosing a laser that has the right nominal wavelength but cannot operate at the required point in the finished equipment.
VCSEL Die and Packaged Solutions From Semiatom GmbH
Semiatom GmbH manufactures VCSEL products for precision photonics, optical sensing, and quantum-related applications.
Our product range includes wavelengths around 760/763 nm, 790/795 nm, 850 nm, and 890/895 nm.
The 760 nm region is relevant to oxygen sensing, while 795 nm and 895 nm are commonly associated with rubidium- and cesium-based atomic systems.
Depending on the wavelength and application, customers can choose from bare VCSEL die, TO-46 packages, custom packages, and non-magnetic packaging.
For selected 790/795 nm and 890/895 nm products, our portfolio includes optical power options from 0.1 mW to 1.8 mW.
We also work with OEM customers on application-specific requirements involving optical output, package materials, mechanical dimensions, and mounting arrangements.
Customers can explore our VCSEL product range or contact Semiatom GmbH to discuss suitable configurations.
Choosing the Right Format for Your Equipment
Bare VCSEL die offers greater freedom over placement, mounting materials, and compact optical integration. It makes sense when the OEM has suitable chip assembly capabilities or needs a laser mounted directly into a specialized optical structure.
Packaged VCSELs reduce chip-level assembly work and provide more convenient mechanical and electrical interfaces. They may be preferable for laboratory instruments, industrial equipment, and products requiring specialized protective or non-magnetic packaging.
Neither option is inherently better for every application.
The most practical choice is the one that meets the optical requirements while fitting the available manufacturing process, mechanical space, and thermal conditions.
Frequently Asked Questions
1. Is a bare VCSEL die cheaper than a packaged VCSEL?
Bare die often has a lower component price, but the OEM must account for die attachment, wire bonding, handling, and other assembly operations. A packaged VCSEL may cost less overall when semiconductor assembly equipment is not already available.
2. Does a packaged VCSEL provide better optical performance?
Not necessarily. Optical performance depends on the semiconductor structure, operating conditions, thermal management, and optical assembly. Packaging can influence heat transfer, reflections, and alignment, but a packaged device is not automatically superior to bare die.
3. Can bare VCSEL die be used in atomic magnetometers?
Yes. Bare die can be integrated into compact atomic sensing equipment when the mounting structure, electrical connections, and thermal conditions are suitable. Material restrictions and possible magnetic interference should also be considered.
4. Can Semiatom GmbH provide customized VCSEL packages?
Yes. Semiatom GmbH offers customized packaging options for suitable VCSEL products, including TO-style and non-magnetic configurations. Available options depend on the selected wavelength, technical requirements, and manufacturing feasibility.
5. Which VCSEL format is better for high-volume OEM production?
Both can be suitable. Bare die may be attractive for manufacturers with established semiconductor assembly equipment, while packaged VCSELs can reduce the amount of in-house chip handling. The better option depends on production cost, assembly yield, equipment capabilities, and product requirements.
