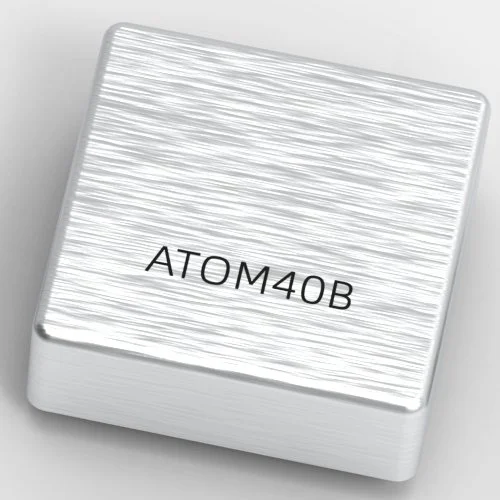

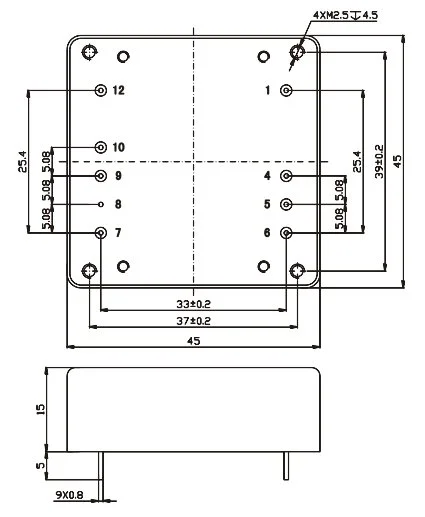

Installation dimensions
Main indicators
Pin definition
Features
Miniaturization
+3.3v low voltage power supply, low power consumption
UART serial communication
Pin compatible with SA. 45s
Sine wave output available
External second synchronization and 1PPS output
TOD short message output
Suitable for highly dynamic applications
| Test items | Technical indicators |
| Output frequency | 10MHz |
| Output level | ≥10dBm,sine wave |
| Factory frequency accuracy (25℃) | ≤±5.0E-11 |
| Short term stability | ≤3.0E-10/1s |
| ≤1.0E-10/10s | |
| ≤3.0E-11/100s | |
| Phase noise(SSB) | ≤-90dBc/Hz@10Hz |
| ≤-120dBc/Hz@100Hz | |
| ≤-140dBc/Hz@1kHz | |
| ≤-145dBc/Hz@10kHz | |
| Frequency drift | ≤3E-11/day |
| Steady state power consumption(25℃) | ≤2W@3.3V |
| Powered by | 3.3V±0.1V |
| Power-on characteristics(25℃) | ≤6 minutes lock |
| Frequency adjustment range | ≥±2E-8 |
| Frequency adjustment accuracy | ≤1E-12(digital adjustment) |
| External second synchronization accuracy | 1PPS synchronization accuracy≤±50ns |
| External second taming accuracy | ≤5E-12(24-hour frequency accuracy average after 1 day of taming) |
| Maintain accuracy | ≤5μs(time difference maintained for 24 hours after 1 day of taming) |
| Range of working temperature | -45℃~+70℃(+75℃ optional) |
| Frequency temperature characteristics | ≤1E-9(≤5E-10optional) |
| Storage temperature range | -55℃~+85℃ |
| MTBF | >100,000h |
| Package | 12-pin dual in-line plug |
| Horizontal size(mm) | 45(±0.5)×36(±0.5) |
| Height size(mm) | 45(±0.5)×36(±0.5)×15(±0.5)(mm) |
| Weight | ≤60g |
| Pin number | Function name | Pin number | Function name |
| 1 | NC | 7 | +3.3V |
| 2 | / | 8 | GND |
| 3 | / | 9 | 1PPS input |
| 4 | Lock indicator | 10 | 1PPS output |
| 5 | TXD | 11 | / |
| 6 | RXD | 12 | 10MHz output |
